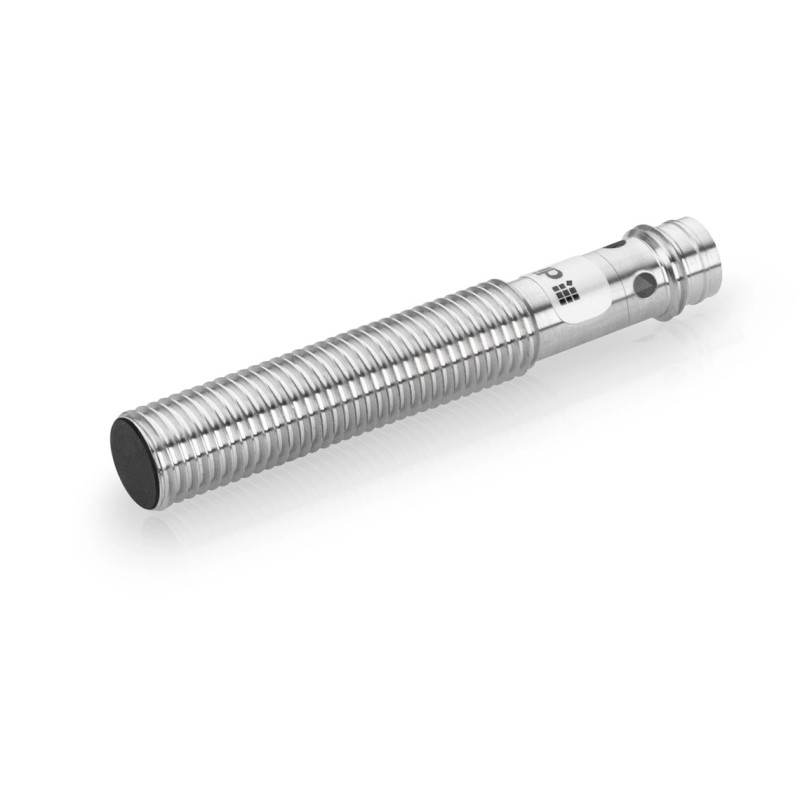

Inductive sensor di-soric INE-M08/40M-B02PS-T4
Index: INE-M08/40M-B02PS-T4
The INE Industrial series includes high-quality, inductive proximity sensors that are available in all sizes up to M30 – in both normal and short designs. They offer maximum flexibility thanks to 3- and 4-pin M8 and M12 plug connectors and PVC and PUR cable variants. IO-Link sensors are also available for modern and efficient automation. Many of our inductive proximity switches have UL and UKCA certifications and are ideal for international use.
Order fulfilment within 1 to 5 weeks
- Highly flexible cable
- Integrated amplifier
- Short-circuit protection
- Starting pulse suppression
- LED
The INE Industrial series includes high-quality, inductive proximity sensors that are available in all sizes up to M30 – in both normal and short designs. They offer maximum flexibility thanks to 3- and 4-pin M8 and M12 plug connectors and PVC and PUR cable variants. IO-Link sensors are also available for modern and efficient automation. Many of our inductive proximity switches have UL and UKCA certifications and are ideal for international use.
INE-M08/40M-B02PS-T4
Data sheet
- Series
- INE Industrial
- Switching output
- pnp
- Working principle
- indukcyjny
- Konstrukcja
- Gwint
- Working temperature
- -25 … 80 °C
- Rozmiar gwintu
- M8 x 1
- Długość obudowy maks.
- 40 mm
- Regulacja czułości
- Tak
- Napięcie zasilania
- 10 … 36 V DC
- Wytrzymałość napięciowa izolacji
- Zgodnie z IEC 60947-5-2 (7.2.3.1)
- Przyłącze
- Złącze; M8; 4-pinowe
- Przewód przyłączeniowy
- TK … /4
- ETIM 8.0
- EC002714
- Stopień ochrony
- IP 67
- Klasa ochronności
- III, zasilanie napięciem bezpiecznym ochronnym (SELV)
- Moment dokręcania (maks.)
- 7 Nm
- Spadek napięcia (maks.)
- 1.6 V DC
- Housing material
- Stal nierdzewna; V2A 1.4301 / AISI 304
- Wewnętrzny pobór mocy
- 15 mA
- Typ sygnału
- cyfrowy
- Histereza przełączania (maks.)
- 1 … 20 %
- Częstotliwość przełączania
- 2000 Hz
- Output function
- YEAH
- Sposób montażu
- Flush
- Zasięg działania (Sn)
- 2 mm
- Materiał sondy czujnika
- Poliester
