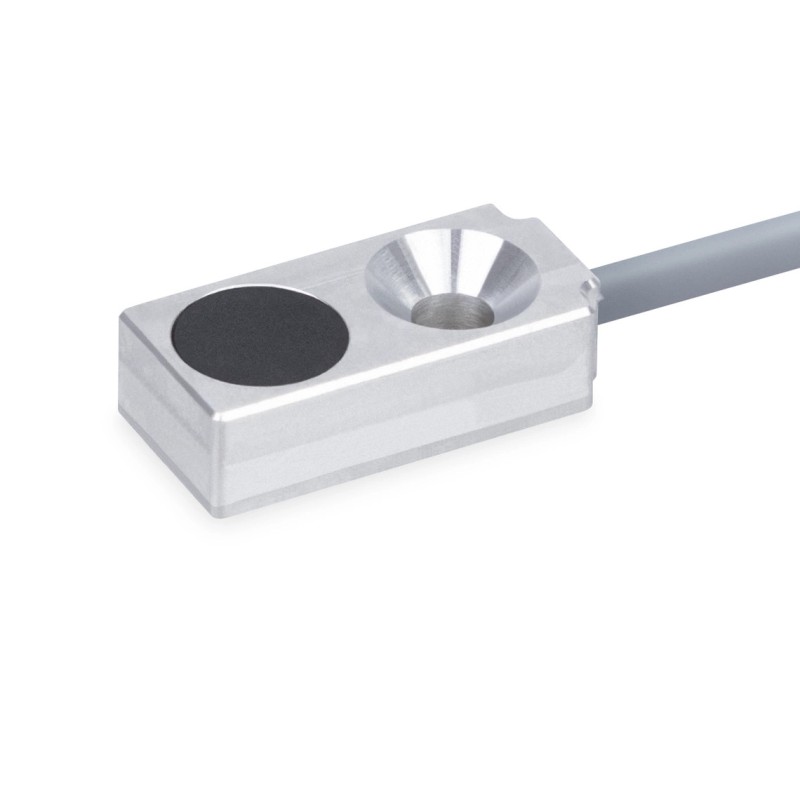

Inductive sensor di-soric INQ-R08/16M-B02PS-0.2TC
Index: INQ-R08/16M-B02PS-0.2TC
The INQ Cube design includes high-performance inductive proximity sensors in sizes 5 x 5 mm, 8 x 8 mm, 40 x 40 mm and the rectangular design in 8 x 16 mm, 28 x 10 mm and 40 x12 mm and enables optimal adaptation to a wide variety of industrial applications. Thanks to the robust plastic or metal housing, these inductive proximity with switching distances of 0.6 mm to 40 mm, they cover a wide range of applications.
Order fulfilment within 1 to 5 weeks
- Ultra-compact Design
- Sensing surface on the top side
- Screw fastening
The INQ Cube design includes high-performance inductive proximity sensors in sizes 5 x 5 mm, 8 x 8 mm, 40 x 40 mm and the rectangular design in 8 x 16 mm, 28 x 10 mm and 40 x12 mm and enables optimal adaptation to a wide variety of industrial applications. Thanks to the robust plastic or metal housing, these inductive proximity with switching distances of 0.6 mm to 40 mm, they cover a wide range of applications.
INQ-R08/16M-B02PS-0.2TC
Data sheet
- Series
- INQ Cubic Model
- Switching output
- pnp
- Working principle
- indukcyjny
- Konstrukcja
- Konstrukcja kostkowa
- Working temperature
- -25 … 70 °C
- Wymiary obudowy
- 8 x 16 mm
- Długość obudowy maks.
- 16 mm
- Napięcie zasilania
- 10 … 30 V DC
- Przyłącze
- Pigtail; 0,2 m; M8; 3-pinowy
- ETIM 8.0
- EC002714
- Stopień ochrony
- IP 67
- Klasa ochronności
- III, zasilanie napięciem bezpiecznym ochronnym (SELV)
- Właściwości
- Podwójny zasięg przełączania
- Spadek napięcia (maks.)
- 1.5 V
- Housing material
- Aluminium
- Typ sygnału
- cyfrowy
- Wewnętrzny pobór mocy
- 10 mA
- Histereza przełączania (maks.)
- 15 %
- Częstotliwość przełączania
- 1000 Hz
- Sposób montażu
- Flush
- Output function
- YEAH
- Zasięg działania (Sn)
- 2 mm
- Materiał przewodu
- PVC
The INQ Cube design includes high-performance inductive proximity sensors in sizes 5 x 5 mm, 8 x 8 mm, 40 x 40 mm and the rectangular design in 8 x 16 mm, 28 x 10 mm and 40 x12 mm and enables optimal adaptation to a wide variety of industrial applications. Thanks to the robust plastic or metal housing, these inductive proximity with switching distances of 0.6 mm to 40 mm, they cover a wide range of applications.
