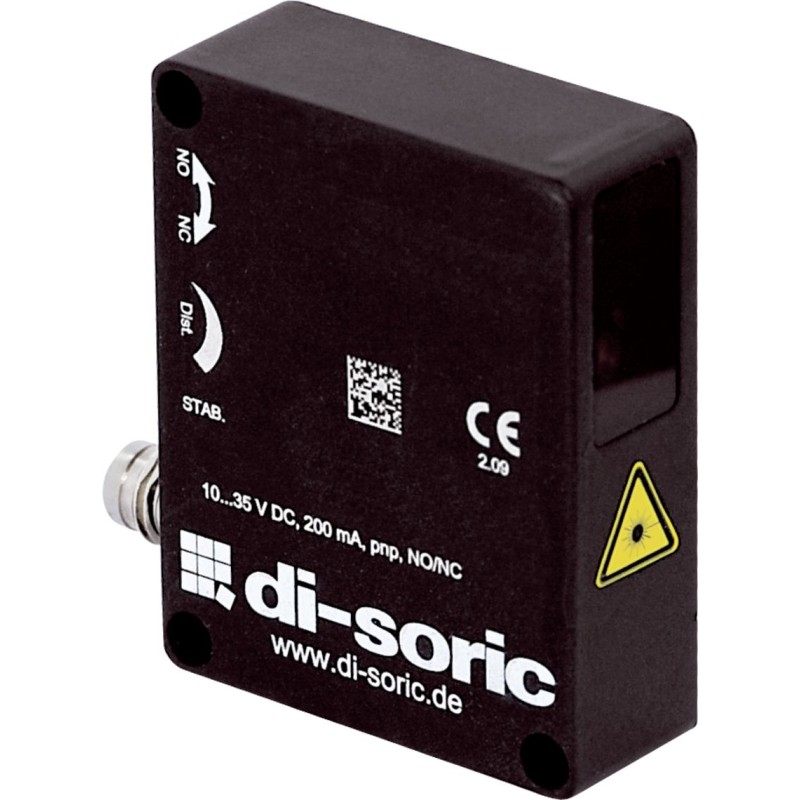

      Index: LHT 51 M 200 G3-T3
      Series
      O-50 Metal
      Working temperature
      -10°C…50°C
      Range
      50 mm … 200 mm
      Switching output
      Push-pull
      Adjustment
      Potentiometer
      Light source
      Laser red
      Working principle
      Reflective with background suppression
      Order fulfilment within 1 to 5 weeks
      Need a part sooner? Contact us.
      +48 42 649 12 15
      Ask for product

      Background suppression sensors are efficient sensors for detecting objects in which transmitters and receivers are located in one housing. They evaluate the position of objects. Objects that are located behind the set switching position are hidden. Sensors with background suppression make reliable detection results possible with varying objects.

      • Automatic adjustment of transmitting power
      • Red-light laser, with small laser spot
      • 4-turn potentiometer
      • Electronic background suppression
      • Bright LED, Connector M8 with ring LED
      • Light/dark switching
      di-soric
      LHT 51 M 200 G3-T3

      Data sheet

      Series
      O-50 Metal
      Working temperature
      -10°C…50°C
      Range
      50 mm … 200 mm
      Switching output
      Push-pull
      Adjustment
      Potentiometer
      Light source
      Laser red
      Working principle
      Reflective with background suppression
