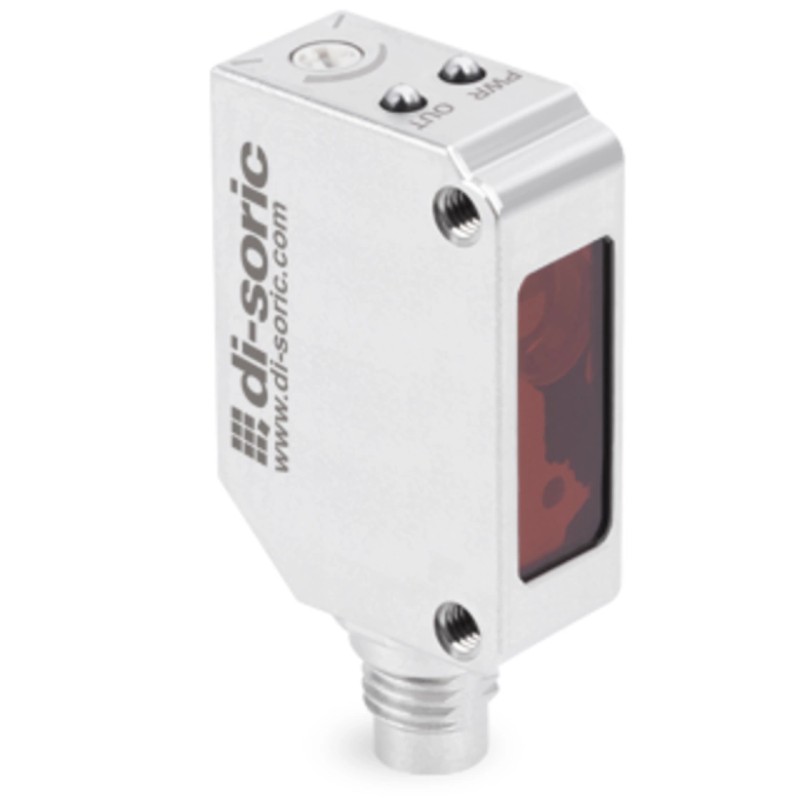

Optical sensor di-soric OH34-RML-PT-G3-T4
Index: OH34-RML-PT-G3-T4
Retroreflective diffuse sensors with background suppression provide reliable detection results with varying objects. They evaluate the position of objects, the objects located behind the set switching position are suppressed.
Order fulfilment within 1 to 5 weeks
- Compact stainless steel housing
- Protection class IP 69K
- ECOLAB approval
- Long range
- Ideal background suppression
- LED red light with large light spot
- Push-pull output with pnp or npn function
- Switch for light/dark switching
- IO-Link
- Sensing range and window function can be parameterized in mm
Background suppression sensors are efficient sensors for detecting objects in which transmitters and receivers are located in one housing. They evaluate the position of objects. Objects that are located behind the set switching position are hidden. Sensors with background suppression make reliable detection results possible with varying objects.
OH34-RML-PT-G3-T4
Data sheet
- Series
- O-34 Stainless Steel
- Switching output
- Push-pull
- Working principle
- Diffuse sensor with background suppression
- Light source
- LED
- Konstrukcja
- Konstrukcja kostkowa
- Working temperature
- -25 … 60 °C
- Interface
- IO-Link; V1.1, COM2 38,4 kBd, Smart Sensor Profile
- Wymiary obudowy
- 32 x 21 x 11 mm
- Materiał
- Tworzywo sztuczne
- Długość obudowy maks.
- 21 mm
- Kolor światła
- Czerwony
- Zasięg maks.
- 20 … 350 mm
- Regulacja czułości
- Potencjometr lub IO-Link
- Napięcie zasilania
- 10 … 30 V DC
- Przyłącze
- Złącze; M8; 4-pinowe
- ETIM 8.0
- EC002719
- Przewód przyłączeniowy
- TK … /4
- Stopień ochrony
- IP 67;IP 69K
- Prąd jałowy (maks.)
- 45 mA
- Klasa ochronności
- III
- Housing material
- Stainless steel
- Spadek napięcia (maks.)
- 1 V
- Ochrona przed odwrotną polaryzacją
- Tak
- Typ sygnału
- cyfrowy
- Częstotliwość przełączania
- 50 … 500 Hz
- Ochrona zwarciowa
- Tak
- Output function
- NO/NC
- Wielkość plamki świetlnej
- Ø 7 mm (at distance of 100 mm)
- Długość fali
- 620 nm
Retroreflective diffuse sensors with background suppression provide reliable detection results with varying objects. They evaluate the position of objects, the objects located behind the set switching position are suppressed.
