Discontinued Siemens Comfort Panels – replace them with notion.S without changing the project
Technical progress is a key driver for the development of the innovative and economically vital industry of industrial automation. Where new solutions emerge, old technologies cannot be maintained indefinitely. At the same time, existing systems are subject to constantly changing requirements regarding compliance, standards, and safety. It is no surprise then that even widely used automation components — such as industrial operator panels and HMI systems — installed en masse in both production lines and special machines, are being phased out by manufacturers after decades on the market.

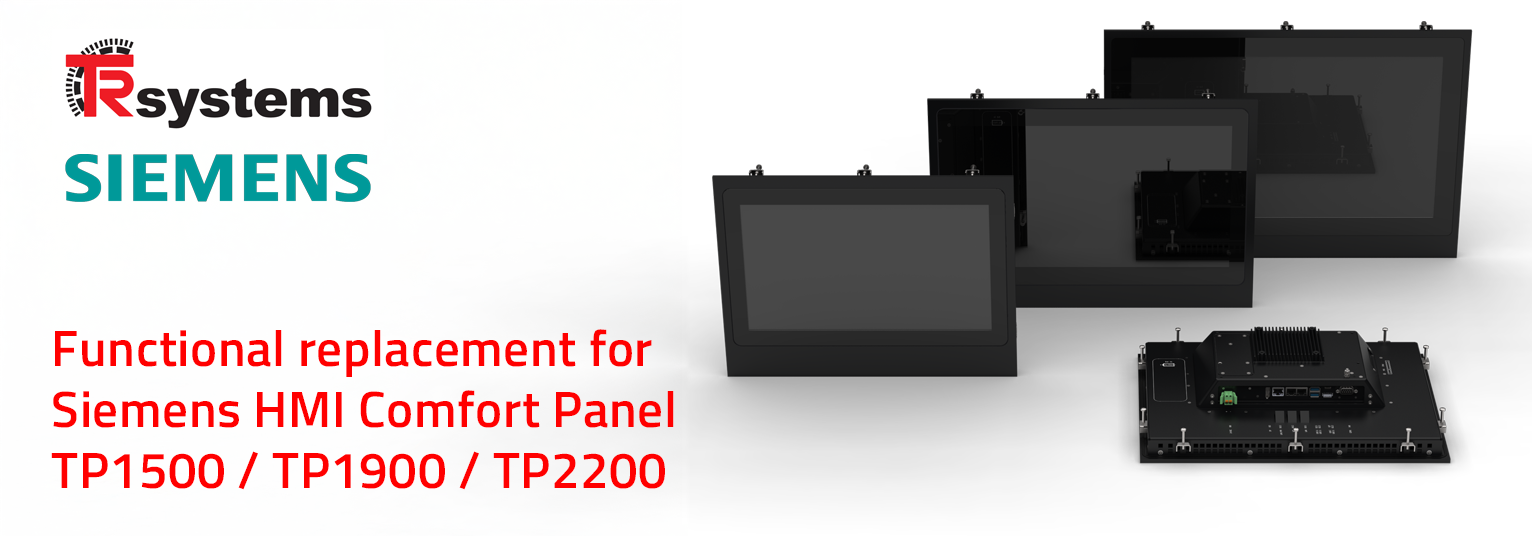

notion.S – compatible HMI instead of Siemens Comfort Panel TP1500 / TP1900 / TP2200
Such a phase-out can, however, generate serious problems, especially in the field of special machine building and industrial installations. The system works, but its reliable operation requires the availability of spare parts. A crucial question arises:
is hardware and software migration to a new system platform necessary?
Full mechanical and functional compatibility, WinCC Runtime Advanced, and ready for WinCC Unified.
The company TRsystems from Trossingen has developed an effective solution for the discontinued HMI Comfort Panel TP1500, TP1900, and TP2200.
The "notion.S – Comfort Panel" series not only fully implements HMI WinCC Runtime Advanced functionality but also enables an easy transition to the future-proof WinCC Unified Client platform — without changing the operating system. Technology designed for long-term availability and maintenance-free operation offers compatible mounting dimensions, replaceable data carriers, and significantly higher computing performance.
End of Siemens Comfort Panel production? notion.S keeps lines running without migration
Same mounting, same project, higher performance, and availability for years.
In addition to standard TCP/IP communication, Ethernet interfaces enable — as an option — a direct connection to SIMATIC S5 and SIMATIC S7 controllers. The modern capacitive touchscreen and refined aesthetics of the devices provide the ergonomics and responsiveness known from contemporary smartphones.
| Series | TRsystems Art. No. | Siemens Art. No. |
|
notion.S - Comfort Panel TP1500 |
778-11991 | 6AV2124-0QC02-0AX1 6AV2124-0QC02-0AX2 |
| notion.S - Comfort Panel TP1500 fullHD 15.6 inch (1920 x 1080) -20... 50 °C |
778-11988 | |
| notion.S - Comfort Panel TP1900 18.5 inch (1366 x 768) 0... 45 °C |
778-11990 | 6AV2124-0UC02-0AX1 |
| notion.S - Comfort Panel TP1900 fullHD 18.5 inch (1920 x 1080) 0...50 °C |
778-11987 | |
| notion.S - Comfort Panel TP2200 21.5 inch (1920 x 1080) 0... 45 °C |
778-11989 | 6AV2124-0XC02-0AX1 |
| Accessories | TRsystems Art. No. | Siemens Art. No. |
|
notion.S Mounting clips (set = 20 pcs.) |
778-90247 | 6AV6671-8XK00-0AX3 |
| notion.S 15.x protective film | 778-90209 | |
| notion.S 18.5 protective film | 778-90208 | |
| notion.S 21.5 protective film | 778-90073 | |
| notion.S 15.x protective film anti-glare | 778-90240 | |
| notion.S 18.5 protective film anti-glare | 778-90248 | |
| notion.S 21.5 protective film anti-glare | 778-90242 | |
| storage medium CFast 120 GByte | 778-91885 | |
| storage medium CFast 240 GByte | 778-91884 | |
| storage medium CFast 480 GByte | 778-91883 | |
| Adapter IBH Link S7++ | 778-91882 | |
| Adapter IBH Link S5++ | 778-91881 |
Replaces discontinued Siemens Comfort Panels TP1500 (6AV2124-0QC02-0AX1, 6AV2124-0QC02-0AX2) TP1900 (6AV2124-0UC02-0AX1) TP2200 (6AV2124-0XC02-0AX1)
As a medium-sized technology company, TRsystems is a competent partner for the development of future-proof automation systems, especially for agile and innovative technology leaders.
© Siemens, WinCC, SIMATIC and TIA Portal are registered trademarks of Siemens AG, Munich
FAQ – Siemens Comfort Panel Replacement
Is notion.S a replacement for Siemens Comfort Panel TP1500, TP1900, and TP2200?
Yes. notion.S is a functionally compatible replacement for Siemens Comfort Panel TP1500, TP1900, and TP2200, maintaining the mounting, functions, and WinCC Runtime Advanced support.
Which Siemens article numbers does notion.S replace?
notion.S replaces Siemens panels TP1500 (6AV2124-0QC02-0AX1, 6AV2124-0QC02-0AX2), TP1900 (6AV2124-0UC02-0AX1), and TP2200 (6AV2124-0XC02-0AX1).
Is HMI project migration in TIA Portal required?
No. WinCC Runtime Advanced projects can be used without migration, allowing for a quick panel swap.
Does notion.S support WinCC Unified?
Yes. notion.S is ready to work with WinCC Unified Web Client without hardware replacement.
Are the mounting dimensions compatible with Siemens panels?
Yes. notion.S has compatible mounting dimensions with Siemens TP1500, TP1900, and TP2200 panels.
