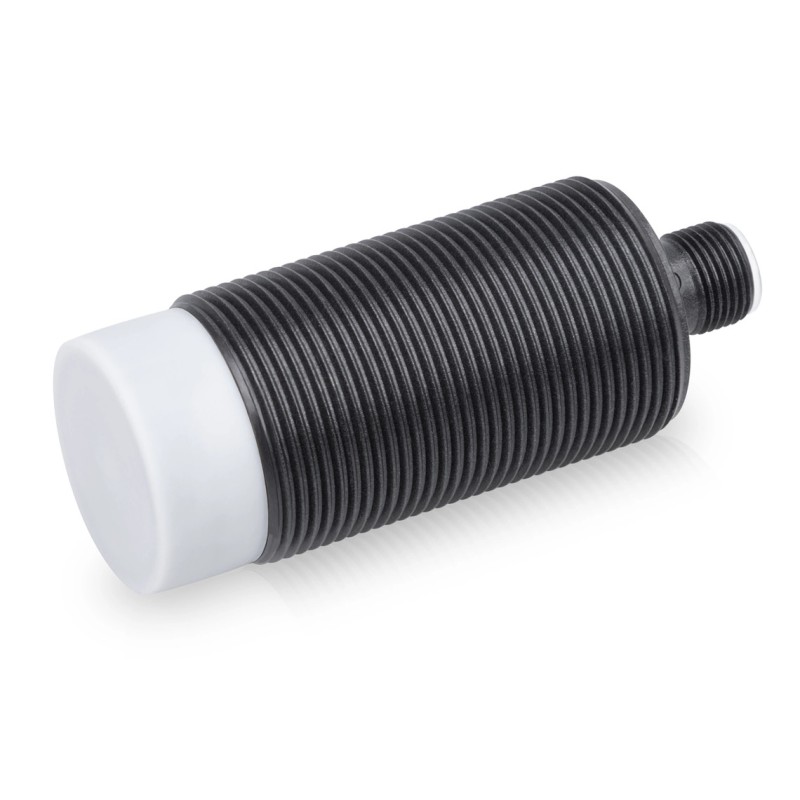

Inductive sensor di-soric INE-M30/78T-N15PO-B4
Index: INE-M30/78T-N15PO-B4
The INE Industrial series includes high-quality, inductive proximity sensors that are available in all sizes up to M30 – in both normal and short designs. They offer maximum flexibility thanks to 3- and 4-pin M8 and M12 plug connectors and PVC and PUR cable variants. IO-Link sensors are also available for modern and efficient automation. Many of our inductive proximity switches have UL and UKCA certifications and are ideal for international use.
Order fulfilment within 1 to 5 weeks
- Welding spark resistant due to PTFE coating
- Weld-proof
- Magnetic field test for DC/AC fields up to 150 mT
The INE Industrial series includes high-quality, inductive proximity sensors that are available in all sizes up to M30 – in both normal and short designs. They offer maximum flexibility thanks to 3- and 4-pin M8 and M12 plug connectors and PVC and PUR cable variants. IO-Link sensors are also available for modern and efficient automation. Many of our inductive proximity switches have UL and UKCA certifications and are ideal for international use.
INE-M30/78T-N15PO-B4
Data sheet
- Series
- INE Industrial
- Switching output
- pnp
- Working principle
- indukcyjny
- Konstrukcja
- Gwint; odporny na spawanie
- Working temperature
- -25 … 70 °C
- Rozmiar gwintu
- M30 x 1.5
- Długość obudowy maks.
- 78 mm
- Regulacja czułości
- Tak
- Napięcie zasilania
- 10 … 30 V DC
- Przyłącze
- Złącze; M12; 4-pinowe
- ETIM 8.0
- EC002714
- Stopień ochrony
- IP 67
- Spadek napięcia (maks.)
- 1.5 V
- Housing material
- Mosiądz; powlekany PTFE
- Ochrona przed odwrotną polaryzacją
- Tak
- Typ sygnału
- cyfrowy
- Histereza przełączania (maks.)
- 15 %
- Częstotliwość przełączania
- 200 Hz
- Ochrona zwarciowa
- Tak
- Sposób montażu
- non-flush
- Output function
- NC
- Zasięg działania (Sn)
- 15 mm
- Materiał sondy czujnika
- PTFE
The INE Industrial series includes high-quality, inductive proximity sensors that are available in all sizes up to M30 – in both normal and short designs. They offer maximum flexibility thanks to 3- and 4-pin M8 and M12 plug connectors and PVC and PUR cable variants. IO-Link sensors are also available for modern and efficient automation. Many of our inductive proximity switches have UL and UKCA certifications and are ideal for international use.
