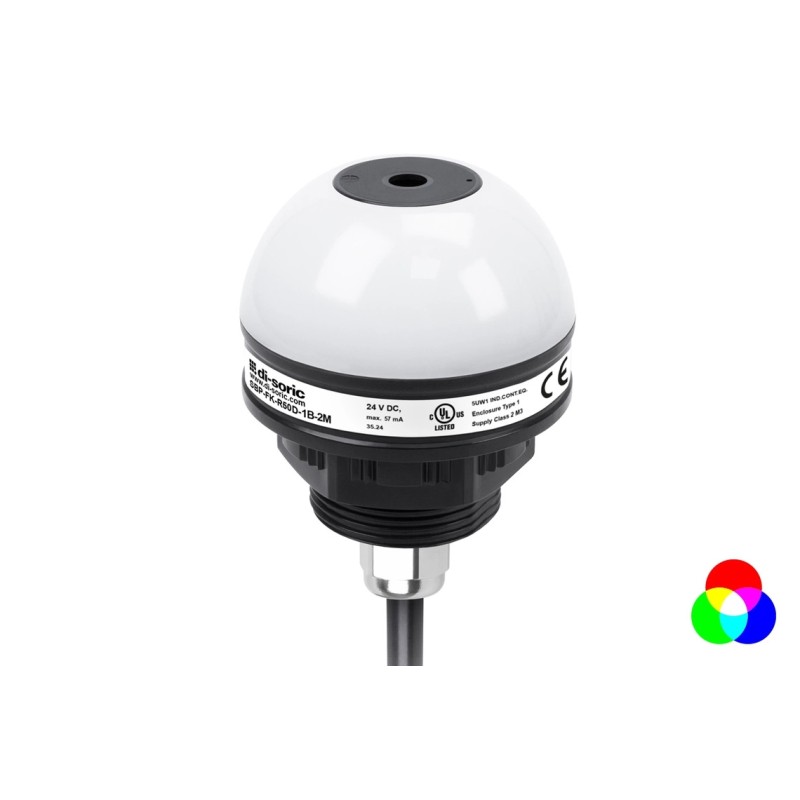

Signal light di-soric SBP-FK-R50D-1B-2M
Index: SBP-FK-R50D-1B-2M
The dome-shaped, multicolor 1-segment signal lamps from the SBP-FK series offer an efficient solution for many applications. They are available in three variantsand enable flexible signaling: as a standard variant for visual signaling, with an additional buzzer for audible support and a Touch button for pick-to-light and user guidance systems. Thanks to directly controlled multicolor LEDs, the signal lamps display up to 7 colors with 24V power, offering a clear and reliable display.
Order fulfilment within 1 to 5 weeks
- 7 colors displayed with 24V power
- Industry-ready
- Control via shared 24V power or shared ground
- Clearly audible acoustic signal
The dome-shaped, multicolor 1-segment signal lamps from the SBP-FK series offer an efficient solution for many applications. They are available in three variantsand enable flexible signaling: as a standard variant for visual signaling, with an additional buzzer for audible support and a Touch button for pick-to-light and user guidance systems. Thanks to directly controlled multicolor LEDs, the signal lamps display up to 7 colors with 24V power, offering a clear and reliable display.
SBP-FK-R50D-1B-2M
Data sheet
- Series
- SBP-FK Stały kolor
- Konstrukcja
- Kopułkowy
- Working temperature
- 0 … 50 °C
- Interface
- 24 V DC
- Materiał
- PC (poliwęglan), w kształcie kopuły
- Napięcie zasilania
- 24 V DC
- Przyłącze
- Przewód; 2 m
- ETIM 8.0
- EC002975
- Powierzchnia świecąca
- 50 x 20 mm
- Stopień ochrony
- IP 20
- Klasa ochronności
- III
- Housing material
- Tworzywo sztuczne; ABS
- Ochrona przed odwrotną polaryzacją
- Tak
- Wewnętrzny pobór mocy
- 57 mA
- Zakres dostawy
- Lampka sygnalizacyjna 1-segmentowa;Wspornik montażowy
- Power
- 1.4 W
The dome-shaped, multicolor 1-segment signal lamps from the SBP-FK series offer an efficient solution for many applications. They are available in three variantsand enable flexible signaling: as a standard variant for visual signaling, with an additional buzzer for audible support and a Touch button for pick-to-light and user guidance systems. Thanks to directly controlled multicolor LEDs, the signal lamps display up to 7 colors with 24V power, offering a clear and reliable display.
