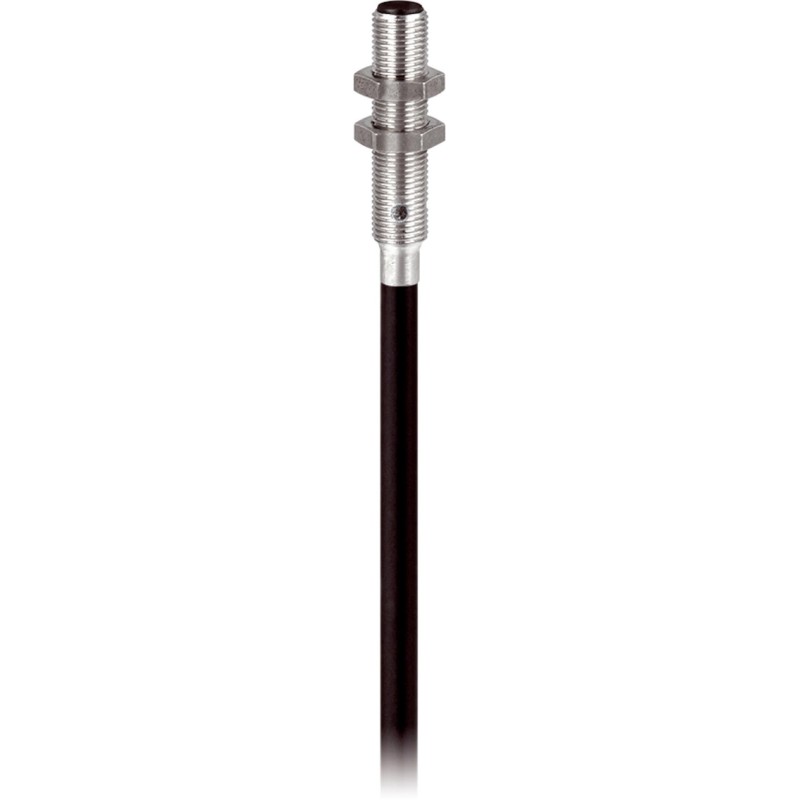

Inductive sensor di-soric DCC 05 V 1.5 POLK/5mPUR
Index: DCC 05 V 1.5 POLK/5mPUR
The INM Miniature series offers a large selection of high-precision and efficient inductive proximity sensors. These compact sensors are specially designed for applications with limited space and enable reliable object detection in the smallest installation spaces. Available in a robust metal housing with diameters of Ø 3.0 mm to M5, proximity sensors are ideal for precise automation solutions. Thanks to their compact design, they offer maximum performance within a minimum amount of space.
Order fulfilment within 1 to 5 weeks
- Stainless steel housing
- Highly flexible cable
- Integrated amplifier
- Short-circuit protection
- Starting pulse suppression
- LED
The INM Miniature series offers a large selection of high-precision and efficient inductive proximity sensors. These compact sensors are specially designed for applications with limited space and enable reliable object detection in the smallest installation spaces. Available in a robust metal housing with diameters of Ø 3.0 mm to M5, proximity sensors are ideal for precise automation solutions. Thanks to their compact design, they offer maximum performance within a minimum amount of space.
DCC 05 V 1.5 POLK/5mPUR
Data sheet
- Series
- INM Miniature
- Switching output
- pnp
- Working principle
- indukcyjny
- Konstrukcja
- Gwint; konstrukcja miniaturowa
- Working temperature
- -25 … 70 °C
- Rozmiar gwintu
- M5 x 0.5
- Długość obudowy maks.
- 24.9 mm
- Regulacja czułości
- Tak
- Napięcie zasilania
- 10 … 30 V DC
- Przyłącze
- Przewód; 5 m; luźne końce
- Wytrzymałość napięciowa izolacji
- 500 V
- ETIM 8.0
- EC002714
- Stopień ochrony
- IP 67
- Klasa ochronności
- III, zasilanie napięciem bezpiecznym ochronnym (SELV)
- Właściwości
- zwiększony zasięg działania
- Spadek napięcia (maks.)
- 1.5 V
- Housing material
- Stal nierdzewna; AISI303
- Wewnętrzny pobór mocy
- 10 mA
- Typ sygnału
- cyfrowy
- Histereza przełączania (maks.)
- 1 … 20 %
- Częstotliwość przełączania
- 5000 Hz
- Zasięg działania (Sn)
- 1.5 mm
- Output function
- NC
- Sposób montażu
- Flush
- Materiał przewodu
- Poliuretan
- Materiał sondy czujnika
- PBT
The INM Miniature series offers a large selection of high-precision and efficient inductive proximity sensors. These compact sensors are specially designed for applications with limited space and enable reliable object detection in the smallest installation spaces. Available in a robust metal housing with diameters of Ø 3.0 mm to M5, proximity sensors are ideal for precise automation solutions. Thanks to their compact design, they offer maximum performance within a minimum amount of space.
