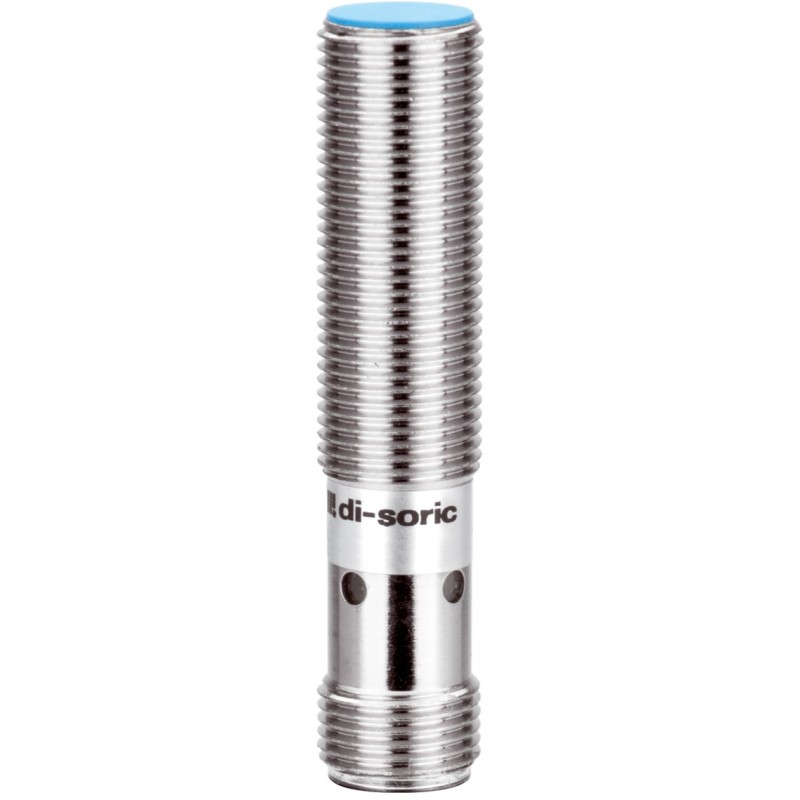

Inductive sensor di-soric DCBK 12 MB 02 PO-B3
Index: DCBK 12 MB 02 PO-B3
This INS Standard series which has an excellent price/performance ratio, is ideal for standard applications in automation technology. Available in conventional designs of Ø 6.5 mm up to M30 and with switching distances of 1 to 15 mm, these sensors offer maximum flexibility for different fields of application. The inductive proximity switches are available with both the PVC cable and plug connection and ensure easy integration into existing systems.
Order fulfilment within 1 to 5 weeks
- Short design
- Metal connector
- Integrated amplifier
- Short-circuit protection
- Starting pulse suppression
- 4 LEDs for switching status display
The INS Standard series offers reliable inductive proximity sensors for a wide variety of industrial applications. This series, which has an excellent price/performance ratio, is ideal for standard applications in automation technology. Available in conventional designs of Ø 6.5 mm up to M30 and with switching distances of 1 to 15 mm, these sensors offer maximum flexibility for different fields of application. The inductive proximity switches are available with both the PVC cable and plug connection and ensure easy integration into existing systems.
DCBK 12 MB 02 PO-B3
Data sheet
- Series
- INS Standard
- Switching output
- pnp
- Working principle
- indukcyjny
- Konstrukcja
- Gwint
- Working temperature
- -25 … 70 °C
- Rozmiar gwintu
- M12 x 1
- Długość obudowy maks.
- 52.3 mm
- Regulacja czułości
- Tak
- Napięcie zasilania
- 10 … 30 V DC
- Wytrzymałość napięciowa izolacji
- 500 V
- Przyłącze
- Złącze; M12
- Przewód przyłączeniowy
- VK …
- ETIM 8.0
- EC002714
- Stopień ochrony
- IP 67
- Klasa ochronności
- III, zasilanie napięciem bezpiecznym ochronnym (SELV)
- Spadek napięcia (maks.)
- 1.8 V
- Housing material
- Mosiądz; niklowany
- Wewnętrzny pobór mocy
- 10 mA
- Typ sygnału
- cyfrowy
- Histereza przełączania (maks.)
- 1 … 20 %
- Częstotliwość przełączania
- 2000 Hz
- Sposób montażu
- Flush
- Output function
- NC
- Zasięg działania (Sn)
- 2 mm
- Materiał sondy czujnika
- PBT
This INS Standard series which has an excellent price/performance ratio, is ideal for standard applications in automation technology. Available in conventional designs of Ø 6.5 mm up to M30 and with switching distances of 1 to 15 mm, these sensors offer maximum flexibility for different fields of application. The inductive proximity switches are available with both the PVC cable and plug connection and ensure easy integration into existing systems.
