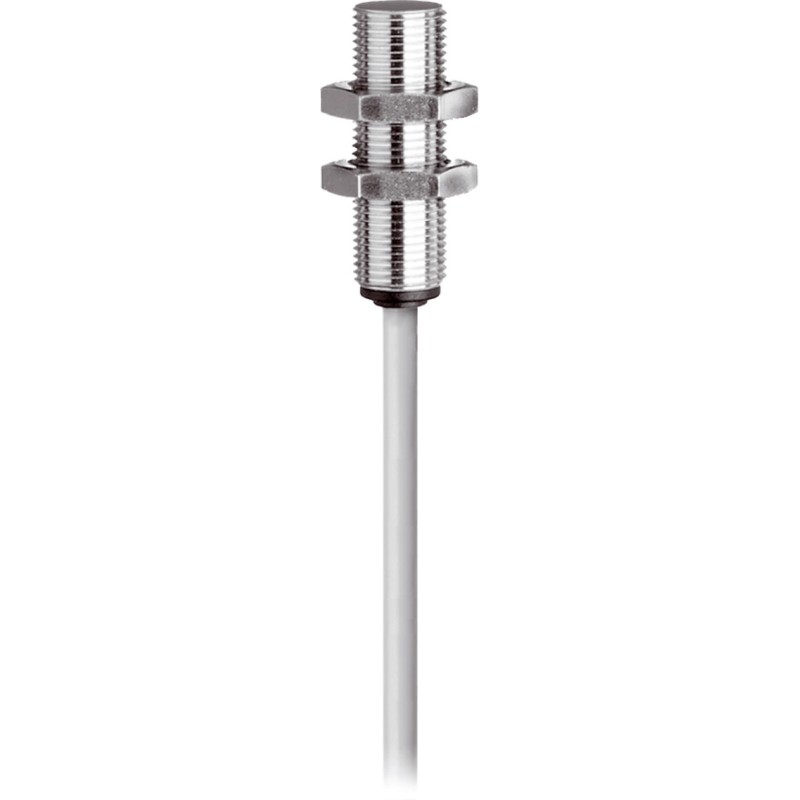

Inductive sensor di-soric DCCK 12 M 04B PSLK/3MPUR
Index: DCCK 12 M 04B PSLK/3MPUR
The INE Industrial series includes high-quality, inductive proximity sensors that are available in all sizes up to M30 – in both normal and short designs. They offer maximum flexibility thanks to 3- and 4-pin M8 and M12 plug connectors and PVC and PUR cable variants. IO-Link sensors are also available for modern and efficient automation. Many of our inductive proximity switches have UL and UKCA certifications and are ideal for international use.
Order fulfilment within 1 to 5 weeks
- Highly flexible cable
- Integrated amplifier
- Short-circuit protection
- Starting pulse suppression
- LED
The INE Industrial series includes high-quality, inductive proximity sensors that are available in all sizes up to M30 – in both normal and short designs. They offer maximum flexibility thanks to 3- and 4-pin M8 and M12 plug connectors and PVC and PUR cable variants. IO-Link sensors are also available for modern and efficient automation. Many of our inductive proximity switches have UL and UKCA certifications and are ideal for international use.
DCCK 12 M 04B PSLK/3MPUR
Data sheet
- Series
- INE Industrial
- Switching output
- pnp
- Working principle
- indukcyjny
- Konstrukcja
- Gwint
- Working temperature
- -25 … 70 °C
- Rozmiar gwintu
- M12 x 1
- Długość obudowy maks.
- 35 mm
- Napięcie zasilania
- 10 … 30 V DC
- Wytrzymałość napięciowa izolacji
- Zgodnie z IEC 60947-5-2 (7.2.3.1)
- Przyłącze
- Przewód; 3 m; luźne końce
- ETIM 8.0
- EC002714
- Stopień ochrony
- IP 67
- Klasa ochronności
- III, zasilanie napięciem bezpiecznym ochronnym (SELV)
- Spadek napięcia (maks.)
- 2 V
- Housing material
- Mosiądz; niklowany
- Typ sygnału
- cyfrowy
- Wewnętrzny pobór mocy
- 10 mA
- Histereza przełączania (maks.)
- 20 %
- Częstotliwość przełączania
- 2500 Hz
- Sposób montażu
- Flush
- Output function
- YEAH
- Zasięg działania (Sn)
- 4 mm
- Materiał przewodu
- Poliuretan
