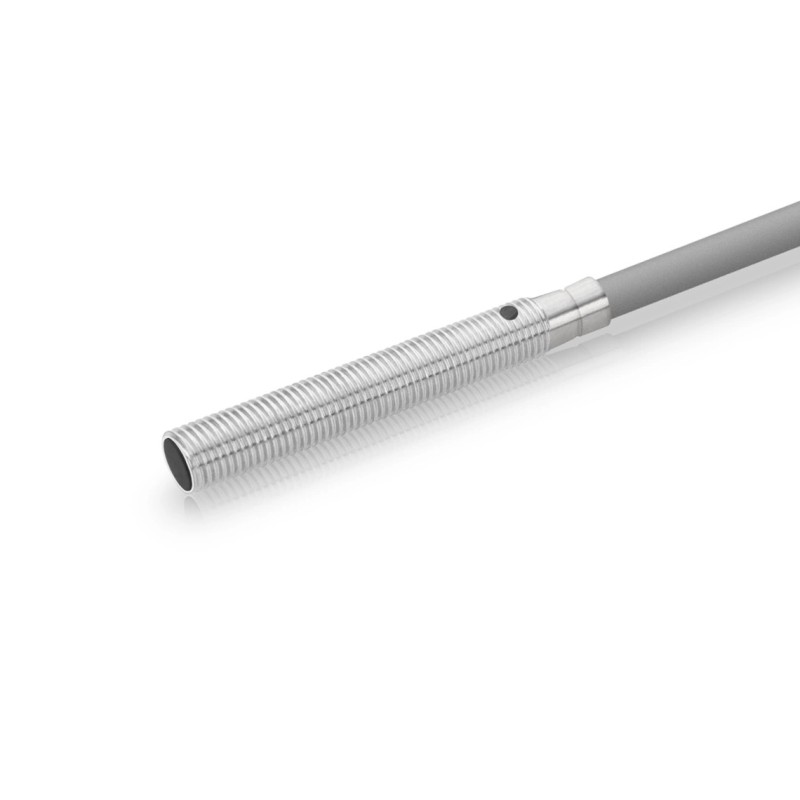

Inductive sensor di-soric DCC 04 M 0.6 PSLK/5m PUR
Index: DCC 04 M 0.6 PSLK/5m PUR
The INM Miniature series offers a large selection of high-precision and efficient inductive proximity sensors. These compact sensors are specially designed for applications with limited space and enable reliable object detection in the smallest installation spaces. Available in a robust metal housing with diameters of Ø 3.0 mm to M5, proximity sensors are ideal for precise automation solutions. Thanks to their compact design, they offer maximum performance within a minimum amount of space.
Order fulfilment within 1 to 5 weeks
- Highly flexible cable
- Integrated amplifier
- Short-circuit protection
- Starting pulse suppression
- LED
The INM Miniature series offers a large selection of high-precision and efficient inductive proximity sensors. These compact sensors are specially designed for applications with limited space and enable reliable object detection in the smallest installation spaces. Available in a robust metal housing with diameters of Ø 3.0 mm to M5, proximity sensors are ideal for precise automation solutions. Thanks to their compact design, they offer maximum performance within a minimum amount of space.
DCC 04 M 0.6 PSLK/5m PUR
Data sheet
- Series
- INM Miniature
- Switching output
- pnp
- Working principle
- indukcyjny
- Konstrukcja
- Gwint; konstrukcja miniaturowa
- Working temperature
- -25 … 70 °C
- Rozmiar gwintu
- M4 x 0.5
- Długość obudowy maks.
- 22 mm
- Napięcie zasilania
- 10 … 30 V DC
- Wytrzymałość napięciowa izolacji
- Zgodnie z IEC 60947-5-2 (7.2.3.1)
- Przyłącze
- Przewód; 5 m; luźne końce
- ETIM 8.0
- EC002714
- Stopień ochrony
- IP 67
- Klasa ochronności
- III, zasilanie napięciem bezpiecznym ochronnym (SELV)
- Moment dokręcania (maks.)
- 0.8 Nm
- Spadek napięcia (maks.)
- 2 V
- Housing material
- Stal nierdzewna; V4A
- Typ sygnału
- cyfrowy
- Wewnętrzny pobór mocy
- 10 mA
- Histereza przełączania (maks.)
- 10 %
- Częstotliwość przełączania
- 5000 Hz
- Sposób montażu
- Flush
- Output function
- YEAH
- Zasięg działania (Sn)
- 0.6 mm
- Materiał przewodu
- Poliuretan
- Maks. długość wkręcania
- 5
The INM Miniature series offers a large selection of high-precision and efficient inductive proximity sensors. These compact sensors are specially designed for applications with limited space and enable reliable object detection in the smallest installation spaces. Available in a robust metal housing with diameters of Ø 3.0 mm to M5, proximity sensors are ideal for precise automation solutions. Thanks to their compact design, they offer maximum performance within a minimum amount of space.
