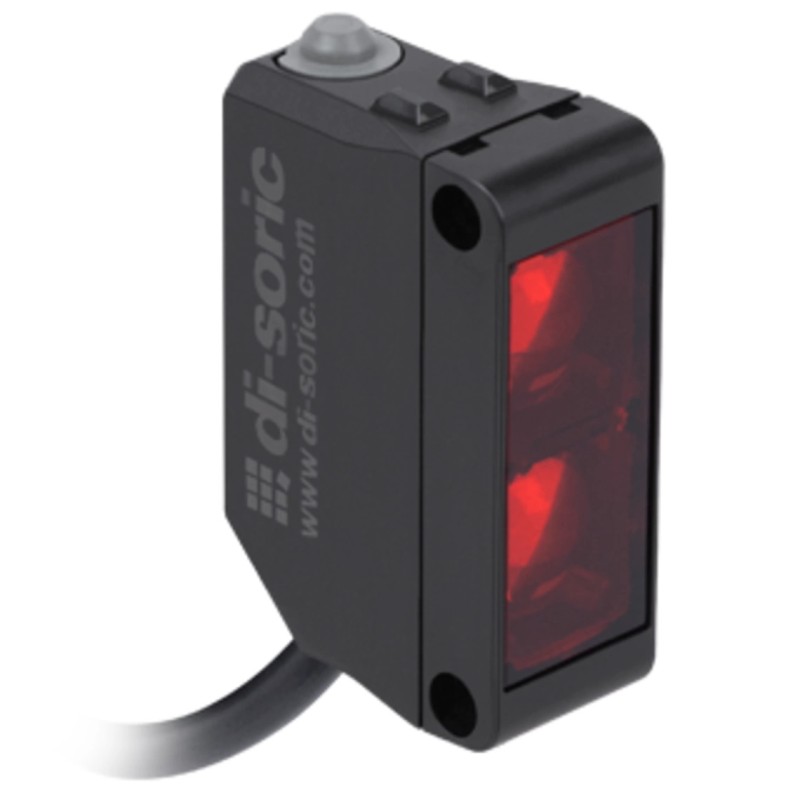

Optical sensor di-soric OH33-LRML-TI-G3-2C
Index: OH33-LRML-TI-G3-2C
Retroreflective diffuse sensors with background suppression provide reliable detection results with varying objects. They evaluate the position of objects, the objects located behind the set switching position are suppressed.
Order fulfilment within 1 to 5 weeks
- Compact design
- Long range
- Ideal background suppression
- Laser red light with small light spot
- DD mode - simultaneous evaluation of intensity and distance
- Push-pull output with pnp or npn function
- Switch for light/dark switching
- IO-Link
- Measuring function
Background suppression sensors are efficient sensors for detecting objects in which transmitters and receivers are located in one housing. They evaluate the position of objects. Objects that are located behind the set switching position are hidden. Sensors with background suppression make reliable detection results possible with varying objects.
OH33-LRML-TI-G3-2C
Data sheet
- Series
- O-33 Universal
- Switching output
- Push-pull
- Working principle
- Diffuse sensor with background suppression
- Light source
- Laser
- Konstrukcja
- Konstrukcja kostkowa
- Working temperature
- -25 … 50 °C
- Wymiary obudowy
- 31 x 20 x 11 mm
- Interface
- IO-Link; V1.1, COM2 38,4 kBd, Smart Sensor Profile
- Materiał
- Tworzywo sztuczne
- Długość obudowy maks.
- 20 mm
- Kolor światła
- Czerwony
- Zasięg maks.
- 20 … 600 mm
- Regulacja czułości
- Button;IO-Link
- Napięcie zasilania
- 10 … 30 V DC
- Przyłącze
- Przewód; 2 m; 4-pinowy; luźne końce
- ETIM 8.0
- EC002719
- Prąd jałowy (maks.)
- 30 mA
- Stopień ochrony
- IP 67
- Klasa ochronności
- III
- Ochrona przed odwrotną polaryzacją
- Tak
- Housing material
- Tworzywo sztuczne
- Spadek napięcia (maks.)
- 1 V
- Typ sygnału
- cyfrowy
- Częstotliwość przełączania
- 40 … 200 Hz
- Ochrona zwarciowa
- Tak
- Output function
- NO/NC
- Materiał przewodu
- PVC
- Wielkość plamki świetlnej
- Ø 1 mm (at distance of 300 mm)
- Klasa lasera
- (IEC 60825-1:2014 / EN 60825-1:2014)
Retroreflective diffuse sensors with background suppression provide reliable detection results with varying objects. They evaluate the position of objects, the objects located behind the set switching position are suppressed.
