      Index: LHT 41 M 0.2 G3-T3
      Series
      O-40E Extended
      Working temperature
      0°C…50°C
      Range
      40 mm … 200 mm
      Switching output
      Push-pull
      Adjustment
      'Teach' button
      Light source
      Laser red
      Working principle
      Reflective with background suppression
      Order fulfilment within 1 to 5 weeks
      Need a part sooner? Contact us.
      +48 42 649 12 15
      Ask for product

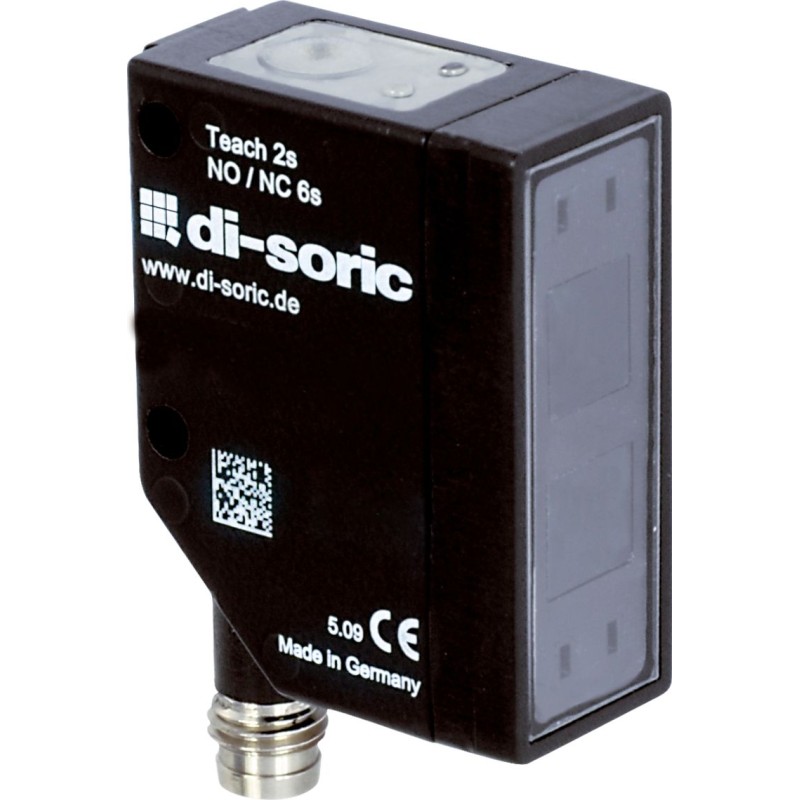

      Background suppression sensors are efficient sensors for detecting objects in which transmitters and receivers are located in one housing. They evaluate the position of objects. Objects that are located behind the set switching position are hidden. Sensors with background suppression make reliable detection results possible with varying objects.

      • Long ranges with a small design
      • Connector, rotatable 270°
      • Dovetail groove for secure mounting
      • NO/NC changeover by teach key
      • Auto and two-point teach procedures
      • Visible red light with small light spot
      • Angled optics
      • Display for unstable function
      di-soric
      LHT 41 M 0.2 G3-T3

      Data sheet

      Series
      O-40E Extended
      Working temperature
      0°C…50°C
      Range
      40 mm … 200 mm
      Switching output
      Push-pull
      Adjustment
      'Teach' button
      Light source
      Laser red
      Working principle
      Reflective with background suppression
