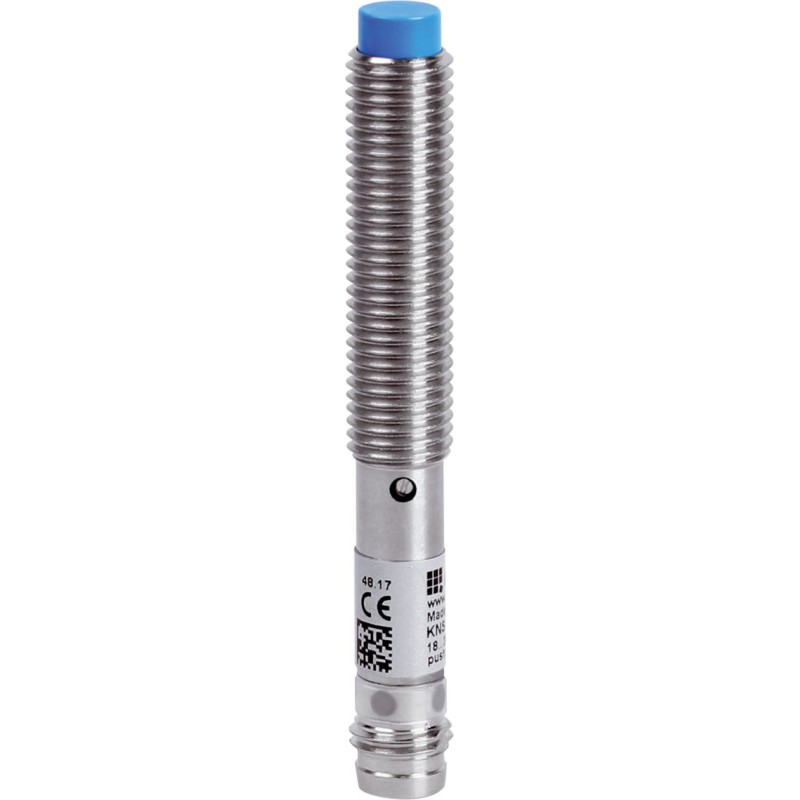

Capacitive proximity sensor
Index: KNS M8M 03N G3-T3
- Size
- M8 x 1
- Series
- KNS Extended
- Length
- 59.5 mm
- Housing material
- Stainless steel
- Range
- 3 mm
- Montage type
- non-flush
- Connection
- M8 connector
- Working temperature
- -25°C...70°C
- Switching output
- push-pull (pnp/npn)
- Output function
- NO/NC
- IO-Link
- NO
- Adjustment
- Potentiometer
Order fulfilment within 1 to 5 weeks
Our capacitive proximity sensors detect liquid, powdery and solid materials precisely and reliably. They are equally suitable for the detection of metallic and non-metallic parts. Parts can also be detected through container walls or packaging. The sensitivity and NO/NC switching is adjusted by way of multiturn potentiometers. The sensors are available in the smallest sizes Ø 6.5mm, M8 and M12.
- Large operating distance
- Detection of liquids, powdery and solid materials
- Detecting metal and non-metal parts
- Detection possible even through containers and packaging
- Sensitivity is adjustable via multi-turn potentiometer
- NO/NC, switchable
- Push-pull output pnp + npn
- Stainless steel housing
KNS M8M 03N G3-T3
Data sheet
- Size
- M8 x 1
- Series
- KNS Extended
- Length
- 59.5 mm
- Housing material
- Stainless steel
- Range
- 3 mm
- Montage type
- non-flush
- Connection
- M8 connector
- Working temperature
- -25°C...70°C
- Switching output
- push-pull (pnp/npn)
- Output function
- NO/NC
- IO-Link
- NO
- Adjustment
- Potentiometer
